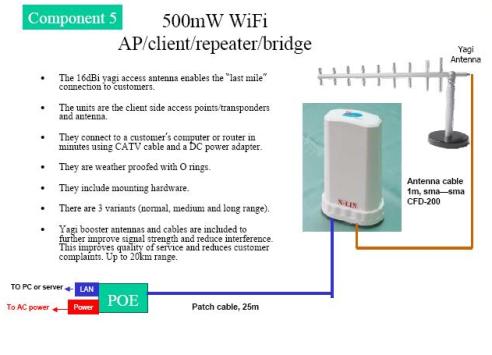

AMU-2405g-sma

up to 20 Km P2P Distance

2.4GHz, 802.11g, 500mW,Fighter
Outdoor Long Range AP/client/Repeater/Bridge
(enhanced version of ASU-24005G : 500mW + arrestors + LED’s)


SMA(female)for external Yagi antenna	48VDC power with in-built arrestors

Feature Highlights

802.11g, 54Mbps, 500mW, up to 20Km
Plastic outdoor unit, water-proof,operating under -15C ~ 65C
Least gain loss of antennas, highest transmission efficiency
In-built 500mW 802.11g booster, output500mW, up to 20Km
Data rate& sensitivity Indication for antenna alignment
LED indication (3) for TX/RX, LAN,operation indications (easy diagnosis by sight)
POE (Power over Ethernet) design, higheststability.

PlatformSpec.

Output power

27dBm (500mW)

Frequency

2400MHz~2483.5MHz

Number of Channel

Modulation

CCK,DQPSK, DBPSK, OFDM

RF Signal type

DSSS

Standard

IEEE802.11g;IEEE802.3; IEEE802.3u

Antenna connector

SMAfemale

Lightenprotection

In-built 3 arrestors,withstand 6KV

Coverage

Up to 20Km with 16-dbi yagi antenna

Operating Mode(Programmable)

AP/Bridge(WDS)/Client/Repeater(Programmable)

SDRAM

8MB

FLASH

2MB

Data Rate

54/48/36/24/18/12/6Mbpsauto fallback

ManagementSoftware Support

Webbased GUI Interface, Web browser supported configuration &firmware upgrade, DHCP client,

Sensitivity/Bandwidth

-88dBm	11Mbps, PER < 8%
-74dBm	54Mbps, PER < 10%

Distance/Bandwidth

5Mbps@ 20Km (802.11b)
17Mbps @ 7Km (802.11g)

Operating Temperature

-15C ~ 65 C

Security

64-bit/128-bit/152-bit encryptionsystemWi-Fi protected Access (WPA)

Power source

AC100~240V; DC 48V/0.4A

Weight of each unit

5Kg/unit(including cables and all accessories)

Angleadjustable mounting bracket	LED’s for LAN, POWER, TX/RX indication (easydiagnosis by sight)
