ASU24005g




Extend Your Broadband DSL or  Ethernet LAN

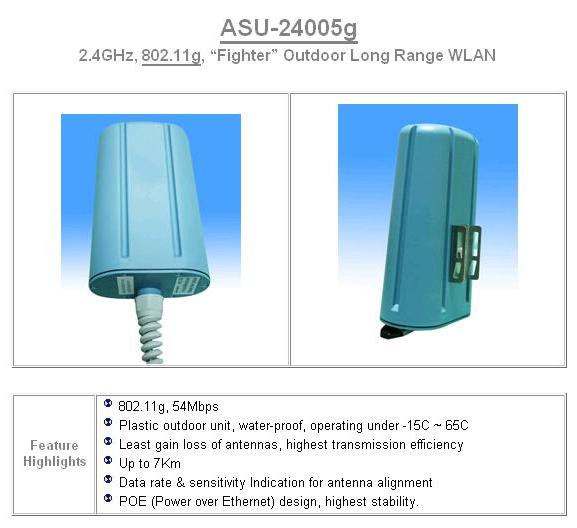

ASU-24005g Fighter Outdoor Wireless Solution
Cost-Effective Long-Range Wireless LAN

ASU24005g
ASU-24005g DSL Extender up to 5Km

Features:

802.11g Standard
Entry-Level CPE "Fighter" Solution"
Compact wireless outdoor access point selectable operation
AP, wireless client, AP repeater and bridge WDS.
Intergrated 12dbi Flat Panel Antenna
Security 64/128/152-bit WEPand WPA
Range 3-7 Km.
Easy Installation
High-quality robust product for high network efficiency
Interoperability with other IEEE 802.11b/g clients,
Uncomprimising reliability and performance

Application:
Extending DSL Connection (Bridge Mode) Point to Point (up to 5Km)
Wireless Internet Service (Point to Multi-Point)
Can be use as Access Point or Client Equipment

Advantages:
Fast Deployment, Easy Installation, Reliable Operation
Ideal for Extending Internet Connection in Remote Areas
Ideal for WISP Operation with Low-Investment needed
Mode Advantageous than using LAN Adaptor

Wireless DSL Extender

Maker-Manufacturer:
Hotware Wireless Ltd of Taiwan
   More....«clickhere

More Longe-RangeDSL Extender Available«««click here

Customer Support via Hotware Integration Center


A pair (Base & Remote Equipment) of ASU-24005g can extend a broadband DSL
to as much as 5Km from DSL Source. All you need is connect one LAN-port connection
from the hub-switch or router. Feed the connection to thePower-over-Ethernet (POE)
then the ASU-24005g will take care of extending your internet
at up to 5Km-7Km (LOS) on wireless mode.

Diagram:

DSL Modem » Router » POE » ASU-24005g (base) «wireless mode » remote » PC

ASU-24005g Extending PSTN/DSL
Note: WL-2401 is similar to ASU24005g but range is higher @ up to 10km

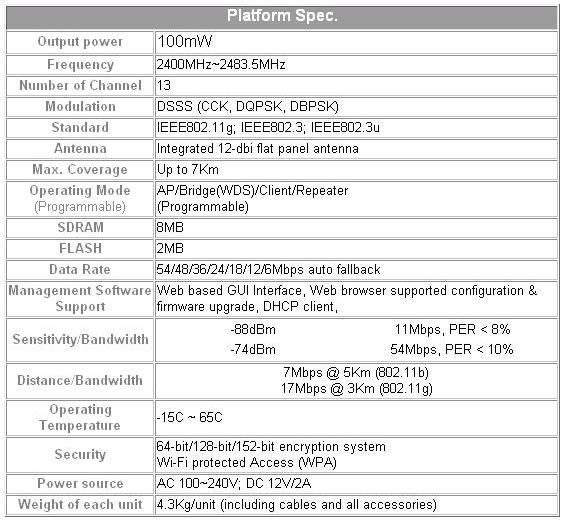

PRODUCT SPECIFICATION


POE DESIGN FOR BETTER PERFORMANCE

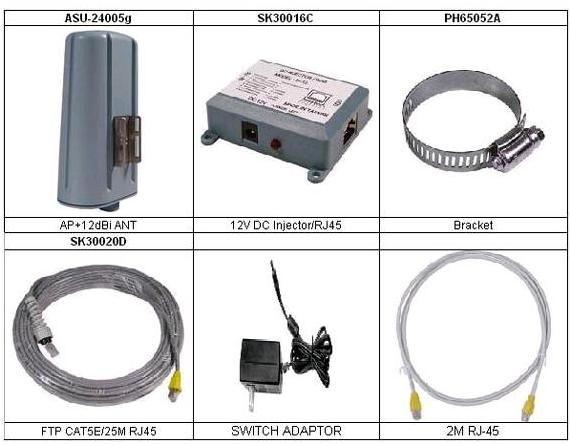

Complete Accessories

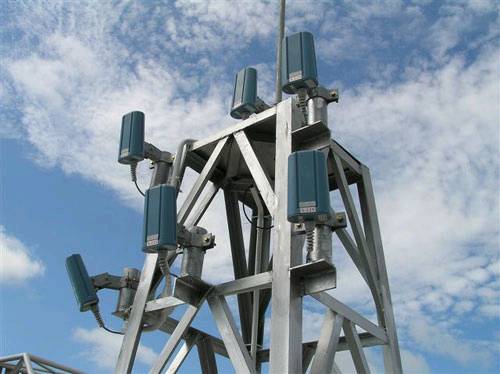

Sample Site Installation



Anumber of successful stories using the product

href="http://www.tech-ware-tips-startup-internet-business.com/ASU24005g.html">ASU24005g
Harbor surveillance over WLAN –2nd largest harbor in Indonesia (Indonesia)
Chemistry Factory Surveillance (Philippine)
WISP 2, total solution franchise Program(Canada)
WISP(Canada)



Ordering Information
Shipping Weight: 2.3Kg/unit
Shipping from Taiwan via DHL/FedEx/EMS
Est. Shipping Cost per 2 units (5 kg approx) packing:
