LC01
Long-Range-Phone
Wireless Voice/Data Phone Range-Extender
LC01- Long Range Phone
Wireless Voice/Data Phone Range-Extender
This is no ordinary cheap, low-quality cordless PhoneSome telco's are actually using this gadget for remote, rural-areas voice-service application such as - Public Calling Office
- Extended Phone Service
- Private Voice-Network, etc...
A good investment that provides full return in short span of time, as well as, reliability andquality-of-service.A phone extender is gadget that is able to extend a wired telephone connection (signal) on wireless-mode over very long distances. How to Leverage on Long-Range Phone Extender To Boost Your Internet Business (click here)The technology was perfected by a team of wireless telecom experts with exposures in wireless military communication-applications. LCO1 Long Range Phone is a middle-end, cost-effective solution for every kind of requirements. It's price is neither cheap nor prohibitive. Bottomline, it can deliver clear voice-signal and high transmission reliability..
LCO1 Long Range Phone Application Usage and Advantages: - Extending telecommunication service (phone, fax, internet…) from city to far rural areas: isolated islands, mines, jungles, mountains, farms, construction sites, villages…. for crossing over 20Km~200Km
- Extending house phone into car mobile phone… for coverage of 20Km~200Km.
- Quickly & Easily to get Phone/Fax line in isolated areas lacking telephone service facilities.
- Immediate deployment, low-cost, easy and quality, almost "carrier-class" wireless solution for Rural Telecom Service Provider.
- No wasting time to wait! No huge cost for telephone wire installation! Wide coverage and applications.

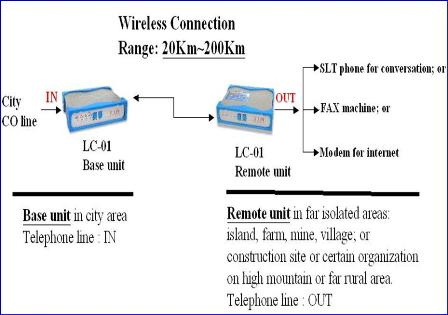

Application Diagram:
LC01 Long Range Phone Wireless Voice/Data Phone Range-Extender
Near Telco-Grade/Carrier Class Advantage:
- Point to Point or Point to mobile use
- Modular design
- Up graded modem speed
- Universal interace on the remote / mobile for fax / data or other telecom equipment use
- Economical and easy to use
- Excellent signal quality for long range use
- RF stability & durability
- Scrambler function
- 40channels frequency auto scan
- Two-way paging & intercom
LC01 Long Range Phone Feature and High-Lights:
- Super long-range: 20Km~200Km.
- Support Point-to-Point and Point to-Mobile network.
- Both voice and data transmission available!
- Multi-compatible: connecting for phone or PABX/KTS or fax or modem (internet), point-to-point, or point-to-mobile (car)
- Fully duplex: 2-way conversation fully available at the same time!!
- Fax transmissionavailable!
- High-speed data transmission for modem: 14.4Kbps ~ 56Kbps.
- Auto Scanning: 20 channels auto scan
- Scramble function: secure the confidentiality of your conversation.
- Two way paging and intercom.
- Tone/Pulse dialing mode switchable
- Transparent transmission: whatever signal on the line is transmitted properly!
| LC-01 Series Table | | | LC-01 | LC-01/8 | LC-01/88 | LC-01/45 | | Outputpower | 5W | 25W | 25W | 45W | | Frequency | 380~390Mhz
250~260Mhz | 380~390Mhz
250~260Mhz | 380~390Mhz
250~260Mhz | 380~390Mhz
250~260Mhz | | Max.Coverage | 40Km w/o repeater | 100Km w/o repeater | 100Km w/o repeater | 200Km w/o repeater | | Repeater | YES | YES | YES | NIL | | Antennatype | Omni | Omni | Omni | Yagi | | Voice/Faxtransmission | YES | YES | YES | YES | | Datatransmission | YES
14.4K~56K | NIL | YES
14.4K~20K | NIL | | Numberof channels | 20 | 6 | 20 | 6 | | Connecting mode | Point-to-Point
Point-to-Mobile | Point-to-Point
Point-to-Mobile | Point-to-Point
Point-to-Mobile | Point-to-Point
Point-to-Mobile | | Power source | AC 100~240V
DC 12V/2A | AC 100~220V
DC 12V/8A | AC 100~220V
DC 12V/8A | AC 100~220V
DC 12V/8A | | Dimension | Base unit 185x155x41mm | Base unit 185x167x31mm | Base unit 305x185x65mm | Base unit 285x270x70mm | | Weight | 10Kg/set | 20Kg/set | 20Kg/set | 22Kg/set |
