WL-2401
2.4GHz Long Range Wireless LAN, WiFi Outdoor
WL2401PAGE |

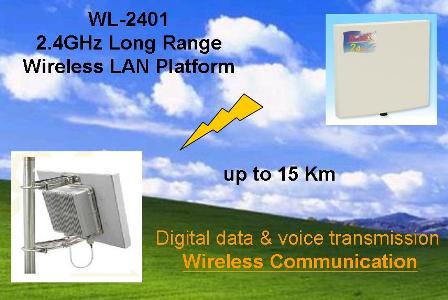

Digital data & voice transmission up to 15 Km | | WL-2401 2.4GHz Long RangeWireless LAN, WiFi Outdoor
| |
| | Usage and Advantages |  | Digitallong-range wireless transmission for data and voice. | | ExtendingLAN, VOIP, phone, Internet…data, image, voice up to 15Km. | | Extendingmulti-phone lines, LAN network from urban through far isolated ruralareas: islands, mountains, villages, stand-alone farms, isolatedconstruction sites, mines, jungles… | | Expanding and bridging multi-phone lines, existing LAN network amongbuildings, offices, companies, branches, cities, groups,factories… | | Combiningusage of WEB related equipments like VOIP, camera… forversatile applications. Advantagesespecially great in those areas lacking of well broad-bandinfrastructure. | | | Feature Highlights | |
| Supercoverage and long range: up to 15Km | |
| TrueOutdoor unit, weather-proof, operating under –35C ~ 70C | |
| Leastgain loss of antennas, highest transmission efficiency | |
| POE(Power over Ethernet) design, best performance with most stability | |
| Reliable and high-speed transmission: 1,2Mbps up to 11Mbps | |
| WLANManagement System support unique management tool: antenna alignment,SNMP, WEP, TRAP SERVER, MAC and RF channelselection…… | |
| Fully user friendly : Software & settings defaulted; allnecessary peripherals and accessories included, only wire connection :plug & play !! | |
| 3 operating mode: Bridge (backhaul), AP and WWB (client) | | |
| | WL-2401 2.4GHz Long RangeWireless LAN, WiFi Outdoor | | PlatformSpec. | | Output power | 200mW(23dBm) | | Frequency
| 2400Mhz~2483.5Mhz | | Number of Channel
| 13 | | Modulation
| DSSS(CCK, DQPSK, DBPSK) | | Radio Interface
| 802.11b | | Max. Coverage
| 18Km | | Operating Mode
| Bridge/AP/WEC | | Data Rate | 1, 2,5.5, 11Mbps auto fall | | Sensitivity/Bandwidth | | -68dBm | 11Mbps | | -72dBm | 5.5Mbps | | -78dBm | 2Mbps | | -83dBm | 1Mbps | | | | Antenna | 18-dbiFlat Panel integrated | | Type of Unit | TrueOutdoor Weather-proof | | Operating Temperature | -35 C ~70 C | | Lightening Protection | Lightening and Surge Protector | | Connector Type | Ethernet : 10/100 Base T (RJ-45)
Antenna : N-type, Female | | Connecting mode | Ad Hoc(Bridge)
Infrastructure (AP/WEC)
Point-to-Point/Point-to-Multipoint | | Management Software Support | MACidentification, Antenna-alignment
SNMP, TRAP, KICK-START, WEP (64/128) | | Power source | AC100~240V; DC 12V/2A | | Pack dimension (full set) | 275x275x40mm/unit | | Weight (full set) | 5.5Kg/withall accessories | | | | | POE (Powerover Ethernet) Design | - True Outdoor unit, weather-proof, operating under–35C ~ 70C
- Least gain loss of antennas, highest transmissionefficiency
- POE (Power over Ethernet) design, best performancewith most stability
| | | | | | | All-in-One Plug & Playuser friendly Pack | | 1xMaster unit with antenna and lightening protector; 1x Slaveunit with antenna and lightening protector
|  | | 2 sets of
25m antenna cable
and all necessary accessories
|  | | WL-24012.4GHz Long Range Wireless LAN, WiFi Outdoor
| |
For inquiries email us: tech-ware@hotware.com.tw
|
|
