xlink-5801a
long range wireless bridge and backhaul solution up to 30km
|
l
|

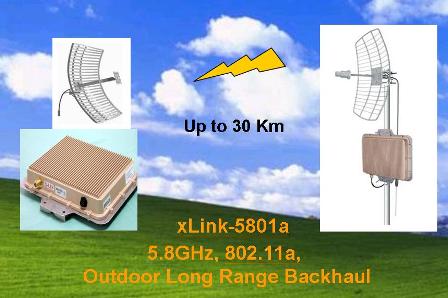

5.8GHz, 802.11a, Outdoor Long Range Backhaul
xlink-5801a
long range wireless bridge and backhaul solution up to 30km
 Application: as Bridge or Backhaul up to 30Km
- True outdoor unit, solid and weather-proof, operating at -35c ~ 70c (-95f ~ 158f)
- Shortest antenna cable, least antenna gain loss, highest performance and efficiency
- Power over Ethernet (POE) design supports best reliability and performance
- 5.8 Ghz least interference and best immunity
- Wi-Fi Bridge/Backhaul full operating options at up to 54Mbps
| | | | | | xLink5801a | | | | | | |
| | | | | Platform Spec. | | Output power | 200 mini Watt (23dBm) | | Frequency | | 5150~5350Mhz | | 5500~5700Mhz | | 5725~5850Mhz | | | Number of Channel | 9 non-overlapping | | Modulation | DSSS (CCK, DQPSK, DBPSK) | | Standard | IEEE802.11A; IEEE802.3; IEEE802.3u | | Operating Mode | Bridge (as backhaul) | | Data Rate | 54/48/36/24/18/12/6Mbps auto fallback | | System Software Support | Web based GUI Interface, SNMP, FTP | | Sensitivity/Bandwidth | | -68dBm
| 54Mbps | | -72dBm
| 48Mbps | | -76dBm
| 36Mbps | | -81dBm
| 24Mbps | | -84dBm
| 18Mbps | | -87dBm
| 12Mbps | | -88dBm | 6Mbps | | | Distance/Bandwidth | | | 36Mbps @ 2Km
24Mbps @ 5Km
18Mbps @ 12Km
12Mbps @ 18Km
10Mbps @ 21Km
6Mbps @ 30Km | | | Type of Unit | True Outdoor Weather-proof | | Operating Temperature | -30 C ~ 70 C | | Security | 64-bit/128-bit/152-bit encryption system | | Power source | Power Over Ethernet
AC 100~240V; DC 48V/2A | | Weight of each unit | 4.8Kg/unit (including cables and all accessories) | | | | |
| | | | POE(Power over Ethernet) Design | - True Outdoor unit, weather-proof, operating under –30C ~ 70C
- Least gain loss of antennas, highest transmission efficiency
- POE (Power over Ethernet) design, best performance with most stability
| | | | | |
xlink-5801a,long range wireless bridge and backhaul solution up to 30km
For international Order: email tech-ware@hotware.com.tw
| | |
